Wilcox Industries RAAM-GSS-M High Power

Wilcox Industries RAAM-GSS-M High Power

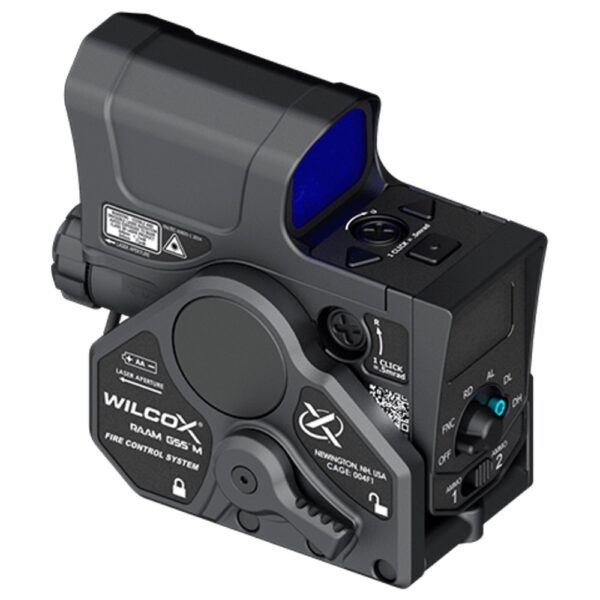

The Wilcox Industries RAAM-GSS-M High Power Rapid Acquisition Aiming Module – Grenadier Sighting System – Locking (RAAM-GSS-M) represents an enhanced iteration of the Grenadier Sighting System selected by the US Army. This model features a distinctive locking mechanism that secures the trajectory sight at a predetermined launch angle, allowing for multiple engagements at the same range. The RAAM-GSS-M has demonstrated a marked improvement in hit probability by significantly boosting accuracy for grenadiers during both day and night operations, while also reducing the time required for target engagement. Additionally, its ergonomic design includes numerous user-friendly features that contribute to its exceptional performance.

FEATURES:

• Unique quick and easy bore sighting to grenade launcher
• Unique locking system that maintains the Trajectory sight angle for multiple engagements
• Reflex sight features an integral back-up iron sights
• NIR aiming laser for clandestine engagements at night
• IR illuminator provides increased recognition at night
• Aiming references to correspond to ballistic range
• User selectable ballistic solution for ammunition
• Quick selector for 2 pre-programmed ballistic solutions
• Cant Indicator for increased accuracy when firing
• Mounts to MIL-STD-1913 rail without modification

KEY ATTRIBUTES:

• • Weight: <11.5oz
  • Size: <16cu
  • Water Resistance: 1 Meter For Up To 30 Minutes
  • Laser Type/Wavelength/Power*: Red Visible Laser/640nm/<1.4mW
  • Laser Type/Wavelength/Power*: Infrared Laser/840nm/30mW
  • Laser Type/Wavelength/Power*: Infrared Illuminator/840nm/30mW
  • *Nominal Output Power Is Subject To +/-10% Tolerance. For Laser Safety Use Nominal Output Power + 20%.
