L3Harris BNVD-1531

L3Harris BNVD-1531

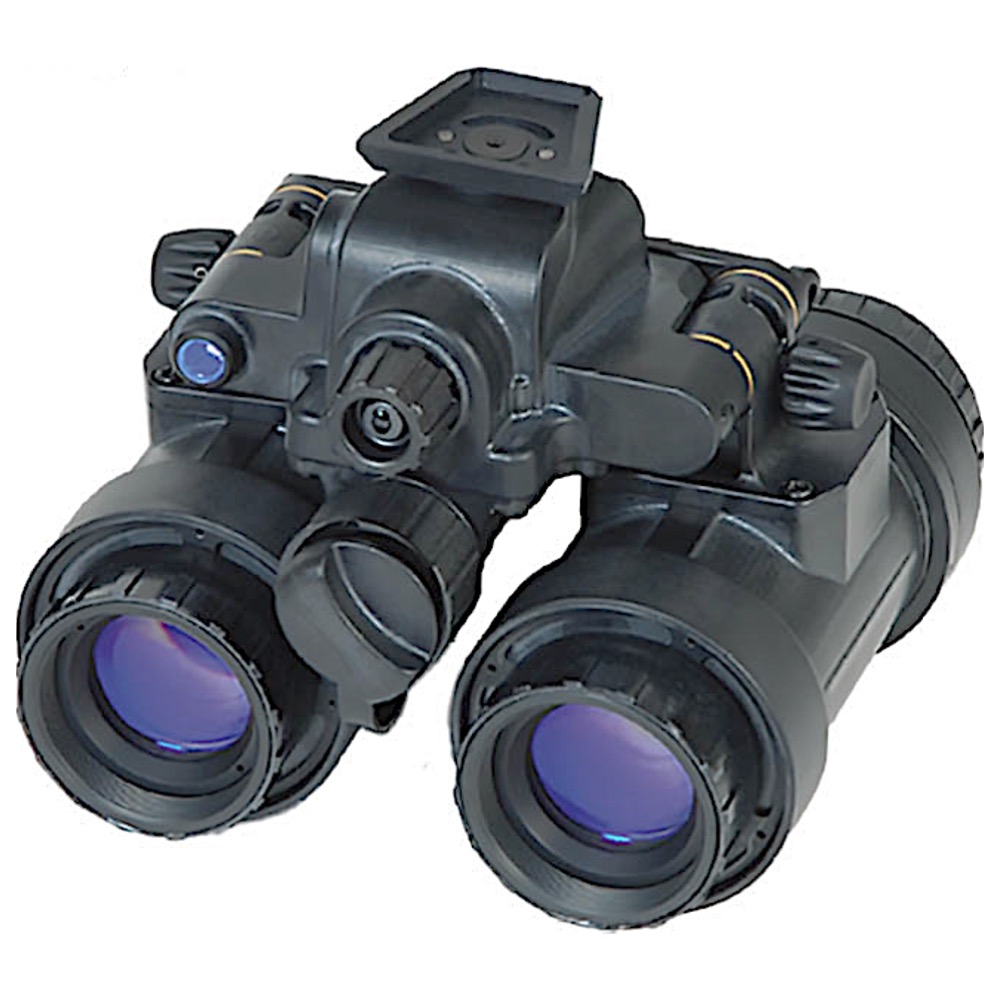

The L3Harris BNVD-1531 Binocular Night Vision Device integrates the most sought-after attributes from the robust, combat-tested AN/PVS-15 and AN/PVS-31, enhancing the capabilities available to the warfighter in a compact and lightweight format. This device exemplifies L3Harris’s commitment to ongoing enhancements in dimensions, weight, performance, and energy efficiency. The L3Harris BNVD-1531 features an ergonomic design akin to the AN/PVS-31, yet it achieves a notable reduction in weight compared to the AN/PVS-15. It includes adjustable diopters, manual gain control, independently rotating monoculars, and a built-in infrared illuminator.

Additionally, the L3Harris BNVD-1531 can be utilized as a helmet-mounted, head-mounted, or handheld system and is designed for field maintenance with minimal tools. The L3Harris BNVD-1531 is equipped with advanced Gen III image intensifiers produced by L3Harris, which include auto-gating power supplies and are offered in white phosphor (P45) with performance metrics exceeding 2376 Figure of Merit (FOM). This white phosphor technology enhances target detection and recognition for the warfighter, making low-light and nighttime operations appear more natural in black and white, while also improving contrast in shapes and shadows. This enhancement provides operators with increased visual information for effective assessment and acquisition. The L3Harris BNVD-1531 represents an optimal solution for delivering versatile night vision capabilities suitable for various operators.

FEATURES:

• Includes Gen III I2 tubes with auto-gated technology to prevent damage in high-light environments
• Manual system gain and focus adjustments for custom image quality optimization
• Lightweight ergonomic design reduces head-borne weight and decreases neck strain
• Adjustable diopter eyepieces to allow use by operators with differing visual acuity Integrated infrared illuminator for map reading
• Rotating binocular design allows low profile against helmet when in stowed position and ability to use as a single monocular
• Works with currently fielded dovetail helmet mounts
• Auto OFF when stowed; resumes power when deployed
• LED indicators in left and right monocular indicates when 10 minutes or more of battery life remains and when the IR illuminator is active
• Replaceable/upgradeable I2 tube assemblies

KEY ATTRIBUTES:

• Dimensions: 4.6″(L) x 4.5″(W) x 3.6″(H)
• Weight: 19.7oz w/ Battery
• Battery Type: (1) AA Lithium
• Battery Life: ≥ 16 Hours Avg At 25°C (77°F), ≥ 50 Hours Avg At 25°C (77°F) On (4) AA Lithium Batteries With Optional 4-Cell Battery Pack
• Field-Of-View: 40° ± 2° Deg (Circular)
• Objective Focus: 10″ To Infinity
• Eyepiece Diopter: Adjustable From +2.0 to -6.0
• Image Intensification: U.S. Manufactured MX-11769 Gen III Variable Gain Tubes
• FOM: > 2376

INCLUDED:

• BNVD-1531 Night Vision Device
• PVS-31 Battery Pack
• PVS-31 Battery Cable
• Soft Storage Bag
• Accessory Kit
