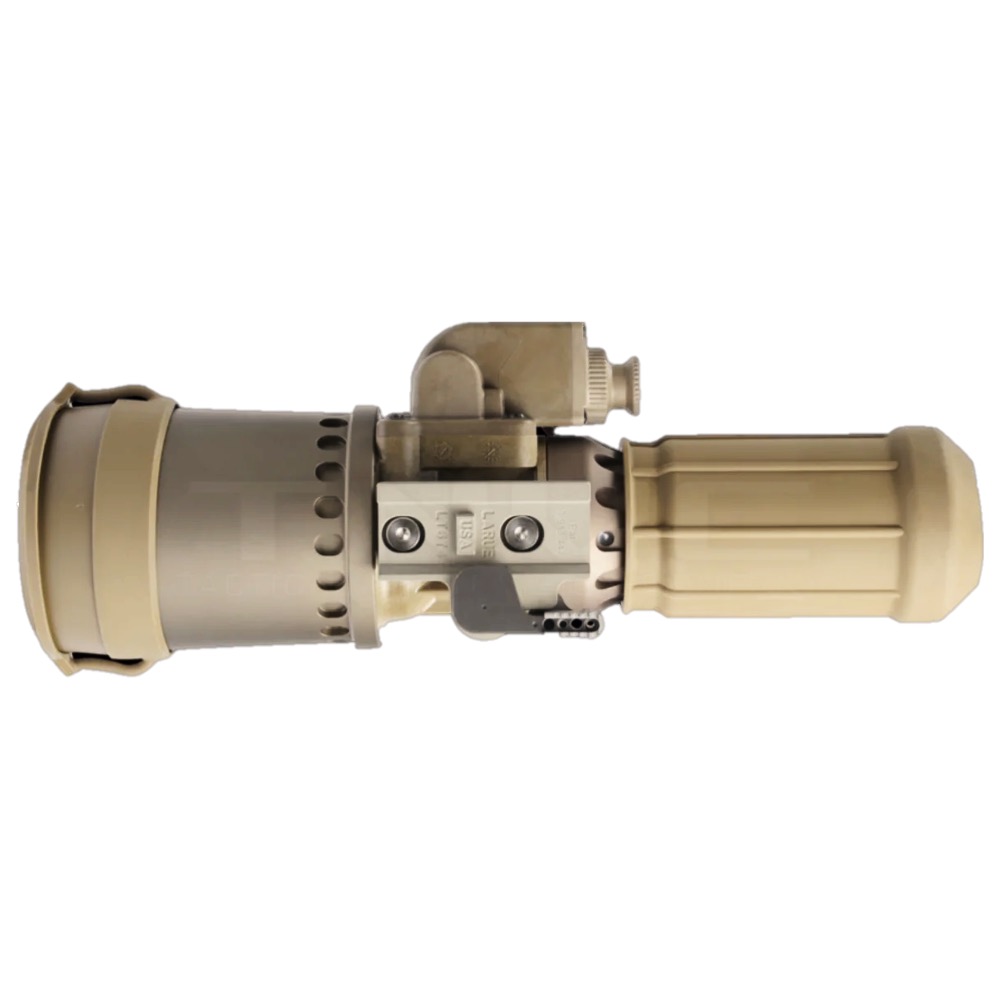

L3Harris CNVD-LR
The L3Harris CNVD-LR is a clip-on night vision device that is designed to be mounted in front of a magnified daytime scope, enabling shooters to utilize their daytime optics during nighttime operations. This device attaches directly to a standard 1913 picatinny rail positioned in front of the existing day scope, eliminating the need to reposition the scope or re-zero the optic. As a result, the shooter can seamlessly transition between daylight and nighttime shooting conditions. By mounting the unit in front of the day scope, the shooter avoids the complications associated with changing optics and re-zeroing, which is a significant advantage of using a clip-on solution compared to a dedicated night vision scope.
Additionally, the L3Harris CNVD-LR can be affixed to a spotting scope, providing users with a nighttime reconnaissance and observation capability. Optimized for middle to long range applications, the L3Harris CNVD-LR is effective within a magnification range of 2.5x to 14x, allowing shooters to achieve consistent target identification at distances exceeding 500 yards with relative ease.
While the device can be utilized with higher magnifications, users may experience a decline in resolution and overall performance. The controls of the L3Harris CNVD-LR are designed for intuitive operation, enabling shooters to manage the device effectively based solely on tactile feedback. The rear-facing power knob also functions as a gain control, allowing the shooter to activate the unit while in a prone or standing position behind the firearm. This knob features a detent to prevent accidental activation and provides clear feedback when the device is powered off.
Additionally, a focus lever located on the top of the unit is user-friendly and can be adjusted while the shooter maintains their position behind the scope and focuses on the target. Overall, the L3Harris CNVD-LR is thoughtfully designed for minimal movement during operation. Constructed from aerospace-grade aluminum and high-impact polymer, the housing of the L3Harris CNVD-LR is robust and capable of withstanding recoil from firearms up to 7.62 NATO.
IMAGE INTENSIFIER TUBE:
The L3Harris CNVD-LR is equipped with an L3Harris Unfilmed White Phosphor Autogated tube, boasting a minimum Figure of Merit (FOM) of 2376. This model represents L3Harris’ top-tier white phosphor image intensifier, delivering exceptional clarity and light transmission. When utilizing the L3Harris CNVD-LR, the shooter views through several layers of glass and an image intensifier tube, all under magnification. Consequently, it is essential for the shooter to have a high-quality tube that provides outstanding clarity and resolution. This tube meets those requirements, offering remarkable performance.
